Production Type | Top Width | Pitch Width | Height | Angle | Length | Length | Length | Length Mark |
Conversion | Range(inch) | Range(mm) | ||||||
AJ | 13.6 | 15.6 | 10.0 | 40° | Li=La-63 | 47"-197" | 1194-5004 | Li |
BJ | 17.0 | 19.0 | 13.0 | 40° | Li=La-82 | 47"-620" | 1194-15748 | Li |
CJ | 22.4 | 25.5 | 16.0 | 40° | Li=La-100 | 79"-620" | 2007-15748 | Li |
DJ | 32.8 | 37.0 | 21.5 | 40° | Li=La-135 | 130"-590" | 3302-14986 | Li |
EJ | 38 | 44.5 | 27 | 40° | Li=La-198 | 196"708" | 5978-17983 | Li |
Features

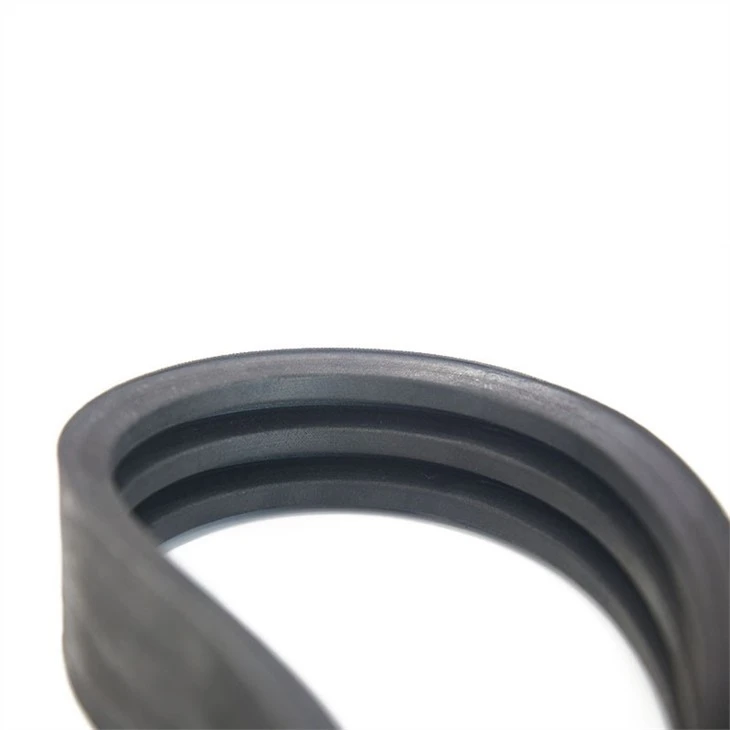

Banded Belts are composed of multiple Elastic V Belts which are connected into a whole They effectively solve problems such as wobbling and turning over occurred in single belt operation while ensuring equal stress of each belt and a large conveying load.
ADVANTAGES
1. Wide breadth but thin belt,excellent elastic and flexural property
2. High transmission efficiency under the operating environment of high-speed rotation,
reverse flexure,small band pulley,ect.
3. Core rubber with high tension and low elongation,while the consistent tension is
maintained during the process of operation.
4. Excellent heat-resistant,oil-proof,and wearing resistance
5. Less slip while large transmission effect during the process of operation.
6. Less noise during the process of operatio
Display
Example of mark
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you
