Classical Wrapped V-belt

Classical wrapped V-belt can solve the problems of low transmission efficiency and need for lubrication at high speed when using chains.

Send Inquiry

Description

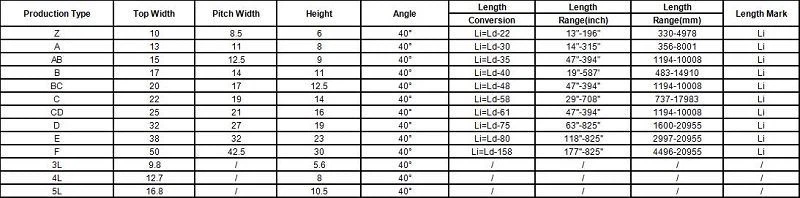

1(001)

Features

1. Classical wrapped V-belt can solve the problems of low transmission efficiency and need for lubrication at high speed when using chains.

2. When using gears, the distance between the driving part and the east is limited.

3. The tensile body is made of glass fiber material to ensure no elongation of the belt.

4. Excellent oil resistance, heat resistance and abrasion resistance.

5. High transmission efficiency can be ensured under the conditions of high-speed rotation and large temperature difference.

6. It can stably exert its performance even at high speed

Display

Marking

Classical wrapped belt with high load,low elongation and long service life.

How to choose

1 Select the correct model should be compatible with the selected Classical wrapped V-belt, otherwise it will be abnormal in the pulley groove. When changing to a V-belt, bring the old belt to the Agricultural Machinery Department to buy it to prevent mistakes in the model.

2 Before installing correctly, install the V-belt, use the same method to install a set of V-belts.

3 To prevent the installation of belt pulleys in series grooves, the centers of the two upper pulleys must be aligned, otherwise it will cause the Classical wrapped V-belt to work unilaterally, severely wear, and reduce the service life of the V-belt.

4 The tightness of the Classical wrapped V-belt must be checked and adjusted frequently to make it meet the requirements. Too loose the V-belt will not only easily slip, but also increase the wear of the V-belt and even fail to transmit power. Too tight will not only cause the V-belt to elongate and deform and be easily damaged, but also cause excessive force on the engine main bearing and clutch bearing. And accelerate the wear of the V-belt. The correct inspection method is: apply a vertical pressure of about 2kg to the middle of each tape by hand, and the sink amount is 20-30 mm. If it is not suitable, adjust it in time.

5 When the new and old mixed double or more than three Classical wrapped V-belts need to be replaced, the V-belts of the specified model shall be selected, and the tightness of each group of V-belts shall be consistent.

6 Strictly prevent contamination During use, prevent the V-belt from oil and muddy water and avoid contact with corrosive substances such as acids and alkalis to prevent slipping and corrosion of the Classical wrapped V-belt and early damage.

7 Daily maintenance operators and users should master the correct operation essentials in normal driving, and according to the technical requirements of the manual, try to avoid sudden starts and sudden braking; also prevent frequent overloading; remove the triangle when the machine is out of service for a long time The belt is stored separately.

2(001)
